Exporting Data to the BigQuery Tables

Set up data export to tables to regularly update information about the audience, contacts' activity, and campaign results in BigQuery. Available datasets for export:

  • broadcasts;
  • contactActivities;
  • contacts;
  • devices;
  • events;
  • messages;
  • orderItems;
  • orders;
  • revenue.

This information will update the data in the BigQuery tables once a day after setting up.

📘

Note

You don’t need to pre-create BigQuery tables. They will be generated automatically at the first export, and since then all the incoming data will be updated. All the table names will correspond to the data sets.

Creating Data Source for Data Export

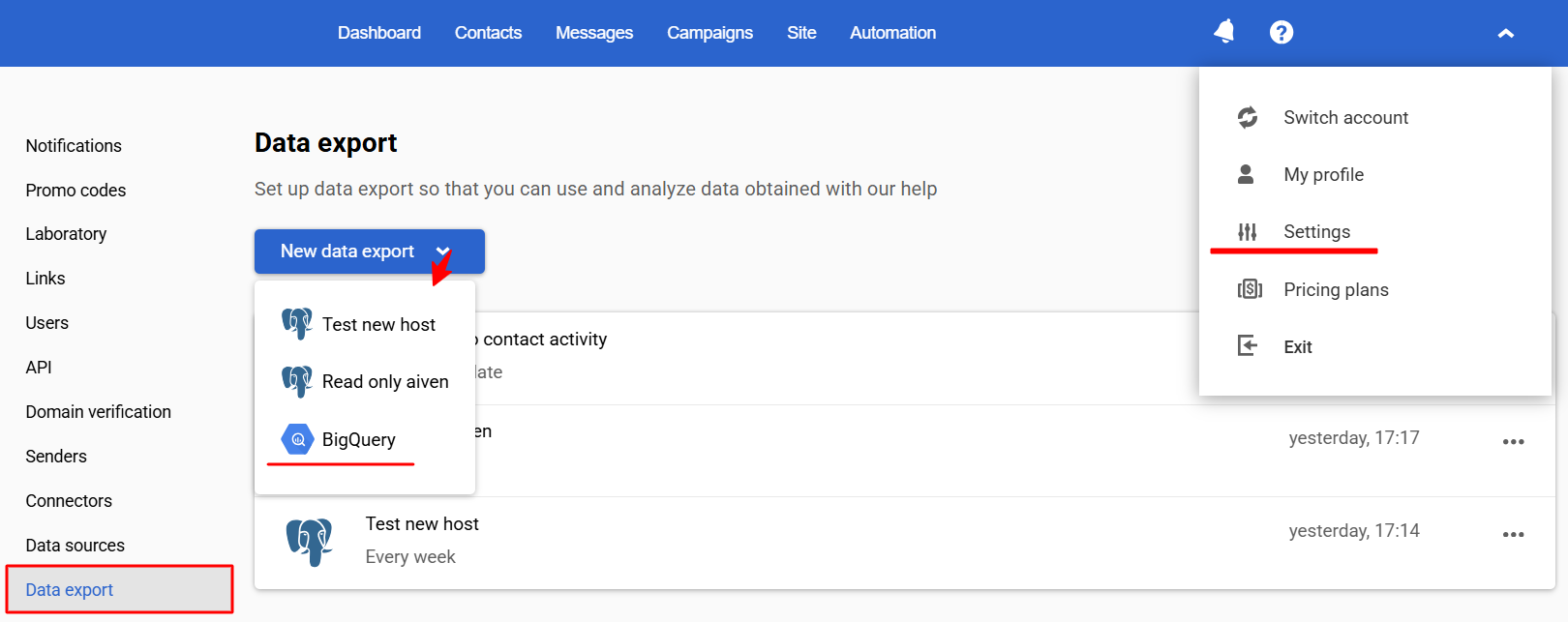

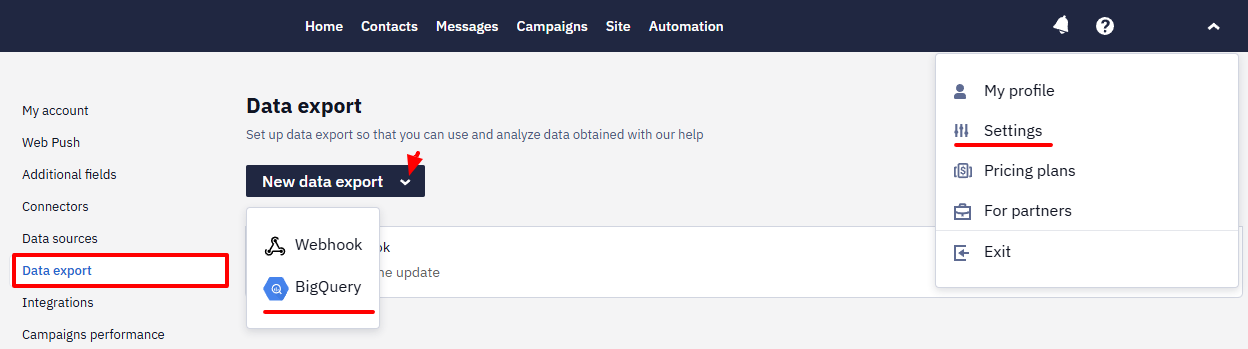

  1. Go to Settings → Connectors and click Add data source.
Add data source

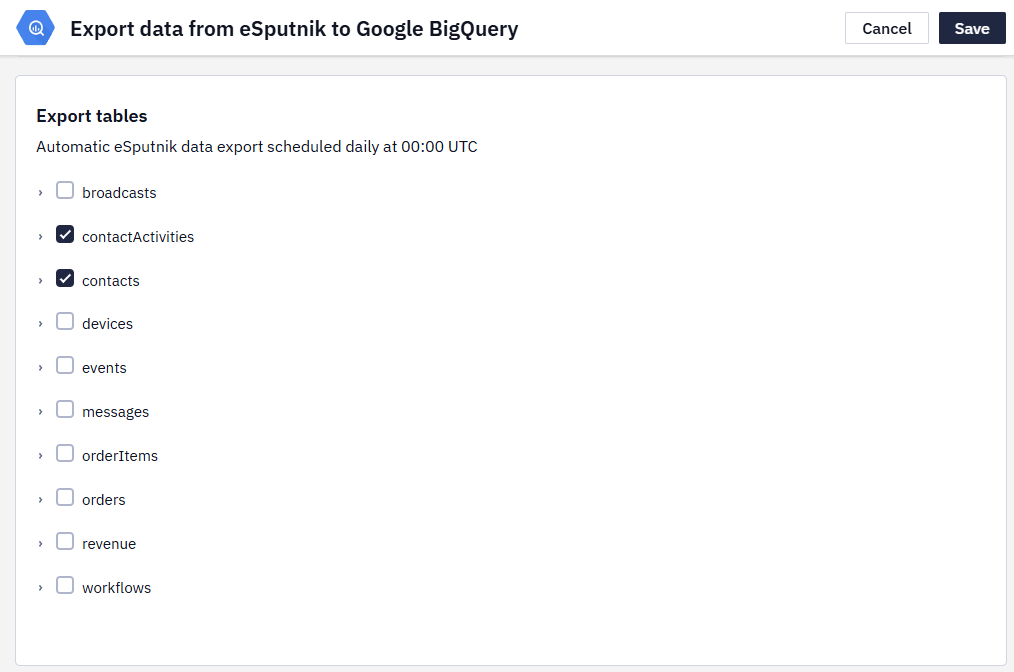

  1. Upload the key file and check the boxes for the data sets you want to upload. Click Save.
Export tables

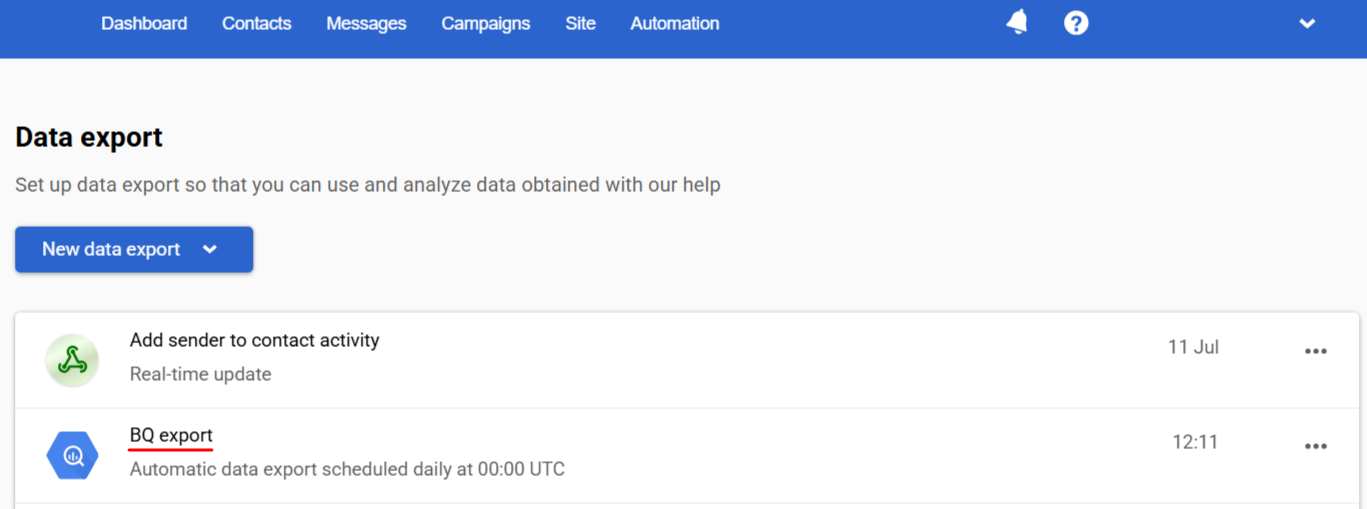

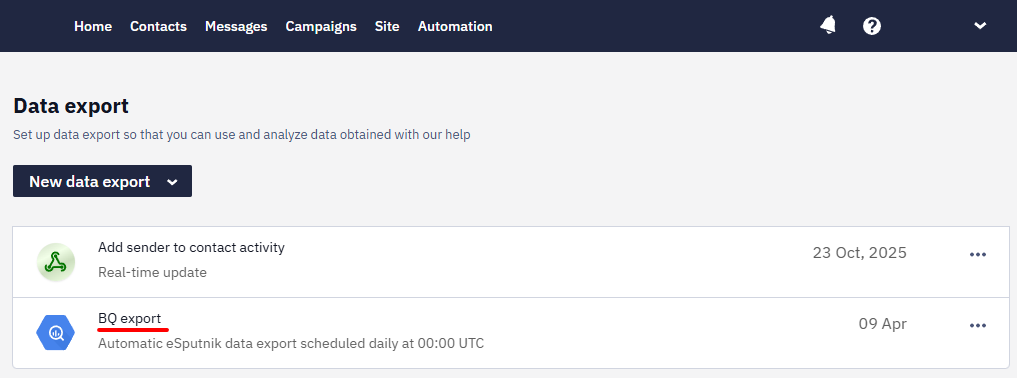

The connection will be displayed in Connectors → Export to BigQuery, here you can edit the settings.

Connectors

List of Data Export Parameters

Broadcasts

ParameterTypeDescription
createdDatetimestampDay and time of message creation (format: '2021-10-08 11:11:02')
groupIdintSegment IDs participating in the broadcast
idintBroadcast ID
mediaTypestringMedia type (Sms, Email, WebPush, Viber, MobilePush, AppInbox, Widget)
messageIdintMessage ID
namestringBroadcast name
startedDatetimestampDay and time of broadcast sending (format: '2021-10-08 11:11:02')
statusstringBroadcast statuses:
• IDLE - completed;
• RUNNING - started;
• PAUSED - paused (if the mailing was not stopped manually by you, contact support for more details);
• SCHEDULED - planned;
• UNCONFIRMED - in queue for moderation;
• CONSIDERATION - under moderation;
• BLOCKED - blocked by moderator.
updatedDatetimestampDay and time of broadcast updating (format: '2021-10-08 11:11:02')

ContactActivities

ParameterTypeDescription
activity (activityStatus) *stringActivity status:
• DELIVERED – the message was delivered.
• UNDELIVERED – the message was undelivered (statusDescription contains the reason).
• RECEIVED – the message was opened.
• UNSUBSCRIBED – a contact unsubscribed from the broadcasting list.
• CLICKED – a contact clicked links in the message.
• SPAM – a contact reported spam.
• SUBSCRIPTION_CHANGED – a contact changed the subscription category.
• PUSH_SUBSCRIBED — a contact subscribed to push notifications.
broadcastIdintBroadcast ID
campaignTypestringCampaign type:
• IM — triggered message,
• Group — bulk campaign.
clickEventLink stringContains the link clicked by a contact (when the status is CLICKED)
contactIdintContact ID in eSputnik (Internal)
errorCode (statusDescription) *stringDelivery error SMTP and description
eventKeystringEvent key
eventTypeKeystringEvent type key
eventIdstringID of an event that had started a workflow
externalCustomerIdstringContact ID in your system (External)
mediaTypestringMedia type (Sms, Email, WebPush, Viber, MobilePush, AppInbox, Widget, In-App, Telegram)
messageInstanceIdintService field
messageLanguageCodestringMessage language code
messageNamestringMessage name in eSputnik account
messageIdintMessage ID
messageTagsstringMessage tags
messageURLstringContains the link to the email web-version
senderNamestringViber sender name
started (activityDateTime) *timestampDay and time of message sending (format: '2021-10-08 11:11:02')
utmCampaign stringCampaign UTM
workflowIdstringWorkflow ID
workflowInstanceIdstringThe identifier of a particular workflow launch. Use it to group mailings within the launch of a workflow.
workflowBlockIdstringWorkflow block ID

*The field will be removed as overdated; use the field indicated in brackets

Contacts

ParameterTypeDescription
contactIdintContact ID in eSputnik (Internal)
contactSource stringstringContact source:
• SITE_AUTOMATED - binding an email to a push subscriber (webPush collection script),
• I_MESSAGE - sending a single message,
• CAMPAIGN - workflow (block Create contact or Add to segment),
• IMPORT - file import or Add contacts method,
• MANUAL - manually created,
• SUBSCRIPTION - subscription form (Subscribe a contact API method),
• Add contact API method,
• ORDER - order on the site (Add orders API method).
createdDatetimestampContact creation date and time (format: '2021-10-08 11:11:02')
email stringContact email
emailDomainstringEmail domain
emailStatusstringEmail status
externalCustomerId stringContact ID in your system (External)
firstName stringContact first name
languageCode stringContact language code
lastClickedDate timestampDay and time of the last click (format: '2021-10-08 11:11:02')
lastNamestringContact last name
lastReceivedDate timestampDay and time of the last delivery (format: '2021-10-08 11:11:02')
lastSentDate timestampDay and time of the last sending (format: '2021-10-08 11:11:02')
lastViewedDatetimestampDay and time of the last opening (format: '2021-10-08 11:11:02')
smsstringPhone number
totalClickedintTotal clicks amount
totalReceivedintTotal received messages amount
totalSentintTotal sent messages amount
totalViewedintTotal viewed messages amount

Devices

ParameterTypeDescription
appVersionstringApp version
applicationIdintApp ID
categorystringCategory
contactIdintContact ID
deviceIdstringDevice ID
deviceModelstringDevice model
externalCustomerIdstringExternal customer ID
languageCodestringLanguage code
osTypestringOS type
osVersionstringOS version
pushTokenstringPush token
timeZonestringTime zone

Events

ParameterTypeDescription
contactIdintContact ID
eventIdintEvent ID
eventTypeKeystringEvent type
keyValuestringEvent key
occuredtimestampDate and time of occurrence (format: '2021-10-08 11:11:02')
paramsJsonjson50 first event parameters and values ​​(name/value); up to 300 characters of values ​​are transferred.

Messages

ParameterTypeDescription
annoyanceLevelintMessage annoyance level
languagestringLanguage of the main version of the message
mediaTypestringMedia type (Sms, Email, WebPush, Viber, MobilePush, AppInbox, Widget, In-App)
messageIdintMessage ID
namestringMessage name
replyTostringReply-to address
senderstringSender
subjectstringSubject
tagsstringTags
translationsstringLanguage versions of the message
updateDatetimestampDay and time of message updating (format: '2021-10-08 11:11:02')

OrderItems

ParameterTypeDescription
cost floatfloatProduct price
descriptionstringProduct description
externalProductIdstringExternal product ID
imageUrlstringProduct image link
namestringProduct name
orderDatetimestampOrder creation date (format: '2021-10-08 11:11:02')
orderIdintOrder ID in eSputnik (Internal)
quantityintNumber of products
urlstringProduct URL

Orders

ParameterTypeDescription
contactIdintContact ID in eSputnik (Internal)
deliveryAddress stringDelivery address
deliveryMethodstringDelivery method
discountfloatDiscount
emailstringEmail
externalOrderIdstringExternal order ID
firstName stringContact first name
lastNamestringContact last name
orderCreatedDatetimestampDate of order creation in eSputnik (format: '2021-10-08 11:11:02')
orderDate timestampOrder creation date (format: '2021-10-08 11:11:02')
orderId intOrder ID in eSputnik (Internal)
paymentMethodstringPayment method
PhonestringPhone number
StatusstringOrder status:
• INITIALIZED,
• IN PROGRESS,
• DELIVERED,
• CANCELED.
totalCostfloatTotal order cost

Revenue

ParameterTypeDescription
activity (activityStatus)*stringActivity status:
• DELIVERED – the message was delivered.
• UNDELIVERED – the message was undelivered (statusDescription contains the reason).
• RECEIVED – the message was opened.
• UNSUBSCRIBED – a contact unsubscribed from the broadcasting list.
• CLICKED – a contact clicked links in the message.
• SPAM – a contact reported spam.
• SUBSCRIPTION_CHANGED – a contact changed the subscription category.
• PUSH_SUBSCRIBED — a contact subscribed to push notifications.
campaignType stringCampaign type:
• IM — triggered message,
• Group — bulk campaign.
clickEventLink stringContains the link clicked by a contact (when the status is CLICKED)
contactIdintContact ID in eSputnik (Internal)
currency stringCurrency
externalCustomerId stringContact ID in your system (External)
externalOrderId stringExternal order ID
mediaType stringMedia type (Sms, Email, WebPush, Viber, MobilePush, AppInbox, Widget)
messageInstanceIdintService field
messageName stringMessage name in eSputnik account
messageTags stringMessage tags
messageUrl stringContains the link to the email web-version
orderDate timestampOrder creation date (format: '2021-10-08 11:11:02')
senderName stringViber sender name
started (activityDateTime)*timestampDay and time of message sending (format: '2021-10-08 11:11:02')
totalCostfloatTotal order cost
utmCampaign stringCampaign UTM
eventKeystringEvent key
eventTypeKeystringEvent type key
messageLanguageCodestringMessage language code
orderIdintOrder ID in eSputnik (Internal)
workflowIdintWorkflow ID
broadcastIdintBroadcast ID

*The field will be removed as overdated; use the field indicated in brackets

📘

Note

Existing entries in the Revenue table (for orders placed after 03.08.2024) can be updated along with the upload of new orders. Updating may be necessary, for example, if the total cost of the order has changed.

Use Cases

Here are some key use cases for exporting data from eSputnik to BigQuery:

1. Advanced Campaign Performance Analysis

  • Dataset Used: broadcasts, contactActivities, messages
  • Description: BigQuery enables e-commerce teams to analyze campaign performance in-depth, tracking key metrics such as open and click-through rates. Exporting data on broadcasts, including segmentation criteria, delivery status, and message type, allows marketers to assess which campaigns achieve the best engagement.
  • Use Case Benefit: By identifying the most effective campaigns, marketers can optimize message content, timing, and audience targeting, enhancing the impact and ROI of future campaigns.

2. Customer Segmentation and Behavioral Analytics

  • Dataset Used: contacts, contactActivities, events
  • Description: BigQuery can process large volumes of customer activity data, enabling e-commerce brands to spot behavioral patterns such as purchase frequency or preferred interaction channels. This insight allows for deeper segmentation, making it possible to target highly engaged customers more accurately.
  • Use Case Benefit: Tailored, behavior-driven campaigns lead to increased customer retention and higher lifetime value (LTV) by delivering experiences that resonate with each audience segment.

3. Personalization and Retargeting

  • Dataset Used: devices, contacts, contactActivities, events
  • Description: By exporting data on user devices, engagement history, and past interactions, e-commerce teams can implement personalized retargeting. For instance, messaging can be tailored to recent activity or device type to enhance relevance and engagement.
  • Use Case Benefit: Personalizing messages based on user actions and preferences improves user experience, boosts conversions, and builds a more dynamic engagement strategy.

4. Predictive Modeling

  • Dataset Used: contacts, orders, revenue, contactActivities
  • Description: Historical data on revenue, purchases, and engagement in BigQuery allows for the development of predictive models to forecast customer churn. This enables brands to identify at-risk customers and target them with retention strategies.
  • Use Case Benefit: Targeted retention campaigns reduce churn and increase LTV, helping brands retain valuable customers and improve long-term revenue.

5. Order and Revenue Analysis for Strategic Insights

  • Dataset Used: orders, orderItems, revenue
  • Description: By analyzing order and revenue data in BigQuery, e-commerce businesses can track metrics such as average order value and revenue trends. This analysis helps identify upselling and bundling opportunities.
  • Use Case Benefit: Insights into revenue patterns allow for data-driven decisions on pricing, promotions, and product offerings, maximizing revenue potential.

6. Monitoring and Alerting on Key Metrics

  • Dataset Used: broadcasts, contactActivities, revenue
  • Description: BigQuery dashboards can monitor key performance indicators (KPIs) such as engagement levels and revenue trends, with the ability to set up alerts for significant changes (e.g., a sudden drop in delivery rates).
  • Use Case Benefit: Monitoring helps maintain campaign effectiveness by allowing teams to quickly address performance issues, ensuring consistent engagement.

7. Campaign ROI and Budget Allocation Analysis

  • Dataset Used: broadcasts, orders, revenue, contactActivities
  • Description: Exporting campaign and revenue data into BigQuery allows e-commerce marketers to calculate ROI and assess campaign cost-effectiveness, providing guidance on optimal budget allocation.
  • Use Case Benefit: By focusing on high-performing campaigns, marketers can optimize spending to maximize marketing effectiveness and returns.

8. Customer Journey Mapping Across Channels

  • Dataset Used: contacts, contactActivities, events, orders
  • Description: BigQuery’s data processing capabilities enable brands to consolidate user journeys across channels, providing insights into the customer lifecycle from discovery to conversion.
  • Use Case Benefit: Understanding the customer journey reveals drop-off points and highlights opportunities for improvement, supporting a smoother experience and higher conversion rates.
